The Autotransformer: For Step-up, Step Down And Split Phase Balancing

PRODUCT CODE : ITR000100100

Description:

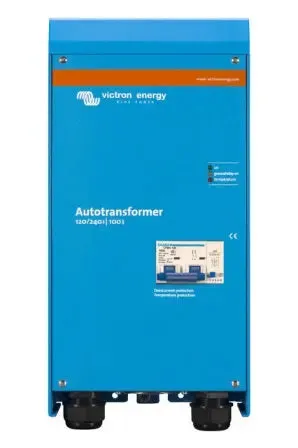

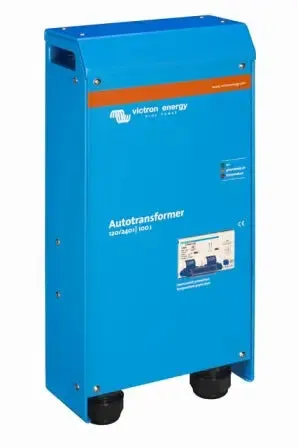

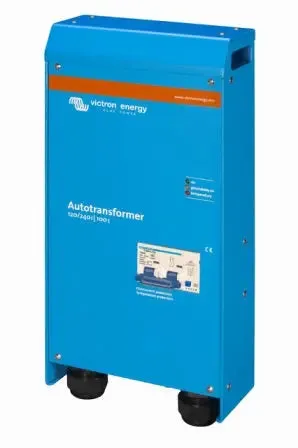

The VICTRON ENERGY AUTOTRANSFORMER offers a high quality, toroidal design for step down and split-phase applications. This 120/240V input/output transformer features an aluminium construction, IP21 protection category, and is temperature protected, making it an alternative to stacked inverters. It also comes with a ground relay for use with Multi or Quattro, and is compactly designed at 15kg.

An autotransformer can be used for step-up, step-down and split phase output balancing purposes. While the step-up and step-down functions are fairly straightforward, split phase output balancing may require some more attention.

Specifications:

• Input/ Output voltage: 120/240V

• Input circuit breaker: 100A two pole

• Frequency: 50/60Hz

• Maximum 240V feed through current: 100A

• Neutral current, 30 min: 32A (3800 VA)

• Neutral current, continuous: 28A @ 40°C/100°F

• Transformer Type: Toroidal

• Enclosure: Aluminium

• Input circuit breaker: yes

• Protection category: IP21

• Safety: EN60076
